DSP 28335 CAN通讯实验

1. 实验目的：

实现开发板上同一个CAN口的数据收发，mail0发送数据，mail1接收数据。

2. 硬件设备

“研旭三兄弟”DSP28335开发板

研旭YXDSP-XDS100V3 仿真器

周立功ZLG USBCANFD200U，USB-CAN转换器，用于电脑与设备间的CAN数据收发

3. 软件准备

Code Composer Studio 6.1.3，用于编写，调试DSP程序。

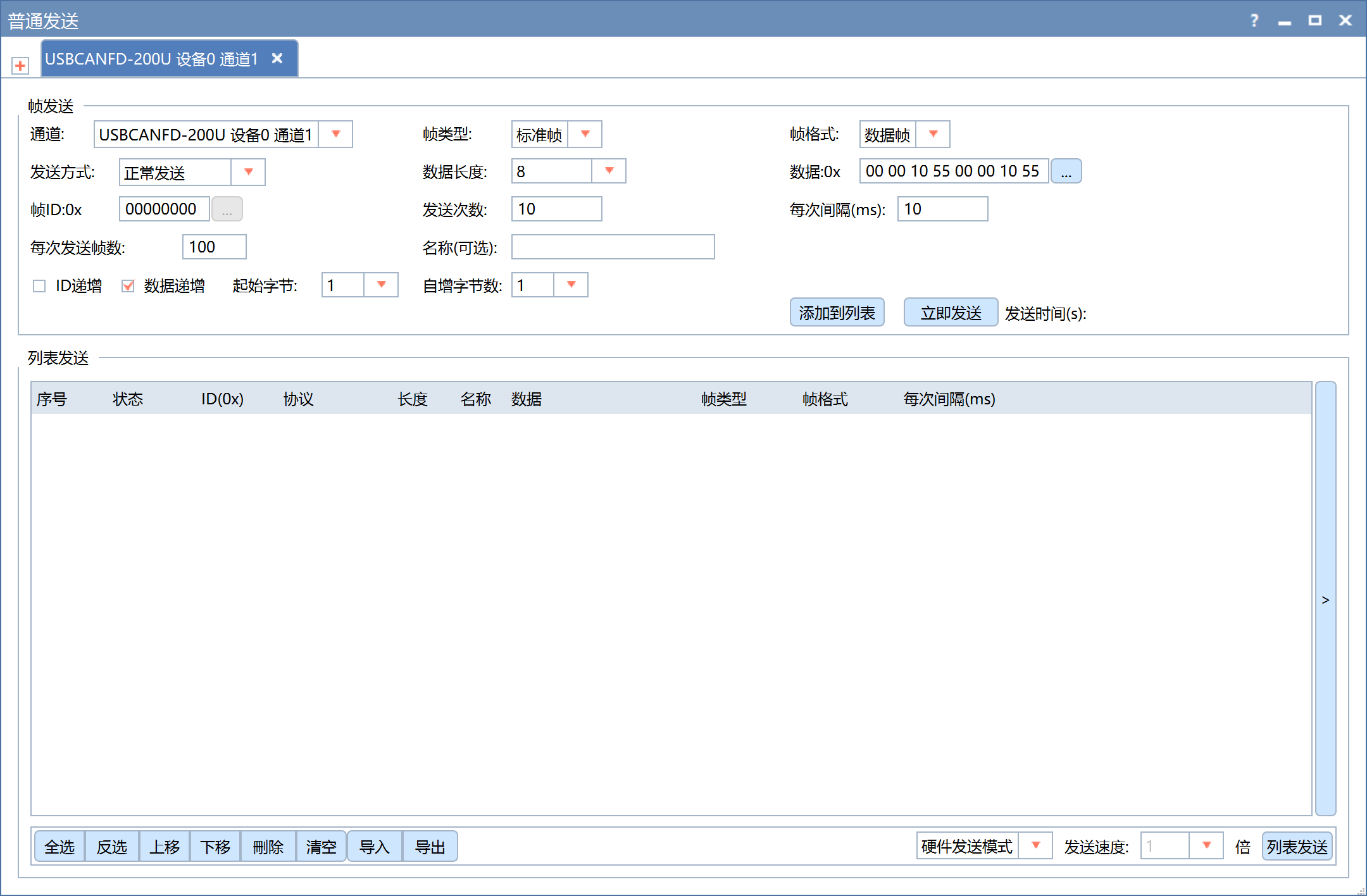

ZCANPRO，用于调试CAN通讯。

4. CAN通讯的原理

CAN通讯的原理其实都是大同小异的，可以参考STM32的CAN通讯原理讲解。
《STM32从零开始学习历程》——CAN通讯协议物理层
《STM32从零开始学习历程》——CAN通讯协议协议层

5. 硬件设计

查阅开发板手册，查询CAN相关外设的引脚信息，方便后续程序中配置GPIO。
本实验中我们使用CANA，也就是GPIO18,19。

我们将开发板的CANL，CANH与USBCANFD的CANH，CANL相连接，如下图所示。

6. 软件设计

CAN初始化子函数

#include "DSP2833x_Device.h" // DSP2833x Headerfile Include File
#include "DSP2833x_Examples.h" // DSP2833x Examples Include File

void InitECan(void)
{

//如果用到了CANA那么使能CANA，如果用到了CANB那么使能CANB
   InitECana();
#if DSP28_ECANB
   InitECanb();
#endif // if DSP28_ECANB
}

//CANA初始化函数
void InitECana(void)
{


struct ECAN_REGS ECanaShadow;						//建立一个阴影寄存器，因为CAN的一些寄存器无法进行直接操作，需要一个阴影寄存器进行间接操作

	EALLOW;											// EALLOW enables access to protected bits


    ECanaShadow.CANTIOC.all = ECanaRegs.CANTIOC.all;//can的发送IO口的配置寄存器读出来，赋值给阴影寄存器
    ECanaShadow.CANTIOC.bit.TXFUNC = 1;				//将负责发送功能的阴影寄存器置一
    ECanaRegs.CANTIOC.all = ECanaShadow.CANTIOC.all;//将置一的阴影寄存器给can io寄存器赋值

    ECanaShadow.CANRIOC.all = ECanaRegs.CANRIOC.all;
    ECanaShadow.CANRIOC.bit.RXFUNC = 1;
    ECanaRegs.CANRIOC.all = ECanaShadow.CANRIOC.all;

	ECanaShadow.CANMC.all = ECanaRegs.CANMC.all;
	ECanaShadow.CANMC.bit.SCB = 1;					//CANMC主控制器 SCB=1为选择eCAN模式，=0 在SCC模式下只有0-15号邮箱可以使用
	ECanaRegs.CANMC.all = ECanaShadow.CANMC.all;
	//清空邮箱的发送寄存器初始化
    ECanaMboxes.MBOX0.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX1.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX2.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX3.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX4.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX5.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX6.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX7.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX8.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX9.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX10.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX11.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX12.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX13.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX14.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX15.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX16.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX17.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX18.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX19.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX20.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX21.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX22.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX23.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX24.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX25.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX26.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX27.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX28.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX29.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX30.MSGCTRL.all = 0x00000000;
    ECanaMboxes.MBOX31.MSGCTRL.all = 0x00000000;
//==============================================================================

//清除所有的发送标志，发送标志
	ECanaRegs.CANTA.all	= 0xFFFFFFFF;	/* Clear all TAn bits *///发送应答寄存器
//清除所有的发送标志，接收标志
	ECanaRegs.CANRMP.all = 0xFFFFFFFF;	/* Clear all RMPn bits *///接收消息挂起寄存器
	ECanaRegs.CANGIF0.all = 0xFFFFFFFF;	/* Clear all interrupt flag bits *///全局中断标志寄存器
	ECanaRegs.CANGIF1.all = 0xFFFFFFFF;

//==============================================================================
/* Configure bit timing parameters for eCANA*/
	ECanaShadow.CANMC.all = ECanaRegs.CANMC.all;
	ECanaShadow.CANMC.bit.CCR = 1 ;            // Set CCR = 1//CPU请求向配置寄存器CANBTC和SCC
												//的接收屏蔽寄存器（CANGAM，LAM[0]，LAM[3]）写配置
												//在该位置位后，CPU必须等到CANES寄存器的CCE标志位为1时，
												//才能对CANBTC寄存器进行操作。如果ABO位置没有置位，CCR
												//位将会在总线离线状态下置位，BO状态能够通过清除这一位而退出
												//=1 请求对位时序进行配置

    ECanaRegs.CANMC.all = ECanaShadow.CANMC.all;
//=================================================================================
    ECanaShadow.CANES.all = ECanaRegs.CANES.all;
    do
	{

	    ECanaShadow.CANES.all = ECanaRegs.CANES.all;
    } while(ECanaShadow.CANES.bit.CCE != 1 );  		// Wait for CCE bit to be set..
    //CANES CCE=1 CPU已经对配置寄存器写访问 =0位拒绝
//=================================================================================
//波特率设置
    ECanaShadow.CANBTC.all = 0;

    #if (CPU_FRQ_150MHZ) // CPU_FRQ_150MHz is defined in DSP2833x_Examples.h
		/* The following block for all 150 MHz SYSCLKOUT (75 MHz CAN clock) - default. Bit rate = 1 Mbps See Note at End of File */
			ECanaShadow.CANBTC.bit.BRPREG = 4;
			//BRPREG为波特率预调节
			ECanaShadow.CANBTC.bit.TSEG2REG = 2;
			//时间段2位
			ECanaShadow.CANBTC.bit.TSEG1REG = 10;
			//时间段1位
    #endif
	#if (CPU_FRQ_100MHZ) // CPU_FRQ_100MHz is defined in DSP2833x_Examples.h
	/* The following block is only for 100 MHz SYSCLKOUT (50 MHz CAN clock). Bit rate = 1 Mbps See Note at End of File */
	    ECanaShadow.CANBTC.bit.BRPREG = 4;
		ECanaShadow.CANBTC.bit.TSEG2REG = 1;
		ECanaShadow.CANBTC.bit.TSEG1REG = 6;
	#endif

    ECanaShadow.CANBTC.bit.SAM = 1;//设置CAN模块使用的采样数已决定CAN总线的实际水平。
    								//=1 CAN模块采样三次，并以多数为准，三次采样只会在位速率预定值大于4时被选取。
    								//=0 CAN模块只会在采样点采样一次
    ECanaRegs.CANBTC.all = ECanaShadow.CANBTC.all;
//========================================================================================
    ECanaShadow.CANMC.all = ECanaRegs.CANMC.all;
	ECanaShadow.CANMC.bit.CCR = 0 ;            // Set CCR = 0
												//=0 CPU请求正常操作。这只能在配置寄存器CANBTC置位位允许的值时完成。
    ECanaRegs.CANMC.all = ECanaShadow.CANMC.all;
//========================================================================================
    ECanaShadow.CANES.all = ECanaRegs.CANES.all;

    do
    {

       ECanaShadow.CANES.all = ECanaRegs.CANES.all;
    } while(ECanaShadow.CANES.bit.CCE != 0 ); 		// Wait for CCE bit to be cleared..
    //CANES CCE=1 CPU已经对配置寄存器写访问 =0位拒绝

/* Disable all Mailboxes */
 	ECanaRegs.CANME.all = 0;		// Required before writing the MSGIDs

    EDIS;
}

//CANB初始化函数 程序和初始化CANA是一样的。

//===========================================================================================
#if (DSP28_ECANB)
void InitECanb(void)		// Initialize eCAN-B module
{

/* Create a shadow register structure for the CAN control registers. This is needed, since only 32-bit access is allowed to these registers. 16-bit access to these registers could potentially corrupt the register contents or return false data. This is especially true while writing to/reading from a bit (or group of bits) among bits 16 - 31 */

struct ECAN_REGS ECanbShadow;

   EALLOW;		// EALLOW enables access to protected bits

/* Configure eCAN RX and TX pins for CAN operation using eCAN regs*/

    ECanbShadow.CANTIOC.all = ECanbRegs.CANTIOC.all;
    ECanbShadow.CANTIOC.bit.TXFUNC = 1;
    ECanbRegs.CANTIOC.all = ECanbShadow.CANTIOC.all;

    ECanbShadow.CANRIOC.all = ECanbRegs.CANRIOC.all;
    ECanbShadow.CANRIOC.bit.RXFUNC = 1;
    ECanbRegs.CANRIOC.all = ECanbShadow.CANRIOC.all;

/* Configure eCAN for HECC mode - (reqd to access mailboxes 16 thru 31) */

	ECanbShadow.CANMC.all = ECanbRegs.CANMC.all;
	ECanbShadow.CANMC.bit.SCB = 1;
	ECanbRegs.CANMC.all = ECanbShadow.CANMC.all;

/* Initialize all bits of 'Master Control Field' to zero */
// Some bits of MSGCTRL register come up in an unknown state. For proper operation,
// all bits (including reserved bits) of MSGCTRL must be initialized to zero

    ECanbMboxes.MBOX0.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX1.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX2.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX3.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX4.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX5.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX6.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX7.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX8.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX9.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX10.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX11.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX12.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX13.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX14.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX15.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX16.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX17.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX18.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX19.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX20.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX21.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX22.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX23.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX24.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX25.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX26.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX27.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX28.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX29.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX30.MSGCTRL.all = 0x00000000;
    ECanbMboxes.MBOX31.MSGCTRL.all = 0x00000000;

// TAn, RMPn, GIFn bits are all zero upon reset and are cleared again
// as a matter of precaution.

	ECanbRegs.CANTA.all	= 0xFFFFFFFF;	/* Clear all TAn bits */

	ECanbRegs.CANRMP.all = 0xFFFFFFFF;	/* Clear all RMPn bits */

	ECanbRegs.CANGIF0.all = 0xFFFFFFFF;	/* Clear all interrupt flag bits */
	ECanbRegs.CANGIF1.all = 0xFFFFFFFF;


/* Configure bit timing parameters for eCANB*/

	ECanbShadow.CANMC.all = ECanbRegs.CANMC.all;
	ECanbShadow.CANMC.bit.CCR = 1 ;            // Set CCR = 1
    ECanbRegs.CANMC.all = ECanbShadow.CANMC.all;

    ECanbShadow.CANES.all = ECanbRegs.CANES.all;

    do
	{

	    ECanbShadow.CANES.all = ECanbRegs.CANES.all;
	} while(ECanbShadow.CANES.bit.CCE != 1 ); 		// Wait for CCE bit to be cleared..


    ECanbShadow.CANBTC.all = 0;

    #if (CPU_FRQ_150MHZ) // CPU_FRQ_150MHz is defined in DSP2833x_Examples.h
	/* The following block for all 150 MHz SYSCLKOUT (75 MHz CAN clock) - default. Bit rate = 1 Mbps See Note at end of file */
		ECanbShadow.CANBTC.bit.BRPREG = 4;
		ECanbShadow.CANBTC.bit.TSEG2REG = 2;
		ECanbShadow.CANBTC.bit.TSEG1REG = 10;
	#endif
	#if (CPU_FRQ_100MHZ) // CPU_FRQ_100MHz is defined in DSP2833x_Examples.h
	/* The following block is only for 100 MHz SYSCLKOUT (50 MHz CAN clock). Bit rate = 1 Mbps See Note at end of file */
	    ECanbShadow.CANBTC.bit.BRPREG = 4;
		ECanbShadow.CANBTC.bit.TSEG2REG = 1;
		ECanbShadow.CANBTC.bit.TSEG1REG = 6;
	#endif

    ECanbShadow.CANBTC.bit.SAM = 1;
    ECanbRegs.CANBTC.all = ECanbShadow.CANBTC.all;

    ECanbShadow.CANMC.all = ECanbRegs.CANMC.all;
	ECanbShadow.CANMC.bit.CCR = 0 ;            // Set CCR = 0
    ECanbRegs.CANMC.all = ECanbShadow.CANMC.all;

    ECanbShadow.CANES.all = ECanbRegs.CANES.all;

    do
    {

        ECanbShadow.CANES.all = ECanbRegs.CANES.all;
    } while(ECanbShadow.CANES.bit.CCE != 0 ); 		// Wait for CCE bit to be cleared..


/* Disable all Mailboxes */
 	ECanbRegs.CANME.all = 0;		// Required before writing the MSGIDs

    EDIS;
}
#endif // if DSP28_ECANB


//===========================================================================================
//GPIO初始化程序 同样也是用到那个can初始化哪个
void InitECanGpio(void)
{

   InitECanaGpio();
#if (DSP28_ECANB)
   InitECanbGpio();
#endif // if DSP28_ECANB
}

//===========================================================================================
void InitECanaGpio(void)
{

   EALLOW;

/* Enable internal pull-up for the selected CAN pins */
// Pull-ups can be enabled or disabled by the user.
// This will enable the pullups for the specified pins.
// Comment out other unwanted lines.

	GpioCtrlRegs.GPAPUD.bit.GPIO18 = 0;	    // Enable pull-up for GPIO18 (CANRXA)

	GpioCtrlRegs.GPAPUD.bit.GPIO19 = 0;	    // Enable pull-up for GPIO19 (CANTXA)

/* Set qualification for selected CAN pins to asynch only */
// Inputs are synchronized to SYSCLKOUT by default.
// This will select asynch (no qualification) for the selected pins.

  GpioCtrlRegs.GPAQSEL2.bit.GPIO18 = 3;   // Asynch qual for GPIO18 (CANRXA)


/* Configure eCAN-A pins using GPIO regs*/
// This specifies which of the possible GPIO pins will be eCAN functional pins.

  GpioCtrlRegs.GPAMUX2.bit.GPIO18 = 3;	// Configure GPIO18 for CANRXA operation

  GpioCtrlRegs.GPAMUX2.bit.GPIO19 = 3;	// Configure GPIO19 for CANTXA operation

    EDIS;
}

#if (DSP28_ECANB)
void InitECanbGpio(void)
{

   EALLOW;

/* Enable internal pull-up for the selected CAN pins */
// Pull-ups can be enabled or disabled by the user.
// This will enable the pullups for the specified pins.
// Comment out other unwanted lines.

  GpioCtrlRegs.GPAPUD.bit.GPIO16 = 0;   // Enable pull-up for GPIO16 (CANTXB)

  GpioCtrlRegs.GPAPUD.bit.GPIO17 = 0;   // Enable pull-up for GPIO17 (CANRXB)

/* Set qualification for selected CAN pins to asynch only */
// Inputs are synchronized to SYSCLKOUT by default.
// This will select asynch (no qualification) for the selected pins.
// Comment out other unwanted lines.


  GpioCtrlRegs.GPAQSEL2.bit.GPIO17 = 3; // Asynch qual for GPIO17 (CANRXB)

/* Configure eCAN-B pins using GPIO regs*/
// This specifies which of the possible GPIO pins will be eCAN functional pins.

  GpioCtrlRegs.GPAMUX2.bit.GPIO16 = 2;  // Configure GPIO16 for CANTXB operation

  GpioCtrlRegs.GPAMUX2.bit.GPIO17 = 2;  // Configure GPIO17 for CANRXB operation


    EDIS;
}
#endif // if DSP28_ECANB

主程序函数页面


#include "DSP28x_Project.h" // Device Headerfile and Examples Include File

#define TXCOUNT 1000 // Transmission will take place (TXCOUNT) times..

// 定义一些常用的变量以及一些函数的声明
long      i;
long 	  loopcount = 0;

#define BEEP GpioDataRegs.GPADAT.bit.GPIO53
#define LED1 GpioDataRegs.GPADAT.bit.GPIO0
#define LED2 GpioDataRegs.GPADAT.bit.GPIO7

Uint16 j;
Uint16 m;

struct ECAN_REGS ECanbShadow;

struct ECAN_REGS ECanaShadow;

void mailbox_read(int MBXnbr);

void mailID_Config(void);

void mail_length(void);

void mail_Data(void);

void CANMIM_interrupt(void);//禁止邮箱中断子函数

void CAN_SelfTestMode(void);//can自我检测模式

void configtestled(void);

void CANMIMI_interrupt_OPEN(void);

Uint32 TESTMbox1 = 0;

Uint32 TESTMbox2 = 0;

Uint32 TESTMbox3 = 0;


void main()
{


unsigned long k = 0;

   InitSysCtrl();
   InitXintf16Gpio();
   InitECanGpio();
   DINT;	//禁止CPU中断
   InitPieCtrl();
   IER = 0x0000;	//清除中断使能位
   IFR = 0x0000;
   InitPieVectTable();


//==================================================================================
/* 1. CANME 使能邮箱 =1使能邮箱 =0禁止邮箱 2. CANMD 配置邮箱接受还是发送 3. CANTRS =1 启动邮箱的数据发送 4. CANTRR =1 取消邮箱的数据发送，置位了CANTRS，数据还没发送出去，可以置位TRR取消数据的发送 5. CANRMP 如果有新的信息进入了邮箱，那么RMP将置位为1 */
   	   	 InitECan();//CAN初始化 已经包含CANME.all =0
   	     mailID_Config();
   	     //设置数据的长度编码
		 mail_length();
		 //设置邮箱内容
// mail_Data();（根据自己需要可以选择调用，本实验中没有使用）

		 CANMIM_interrupt();//CAN禁止中断模式
		 CAN_SelfTestMode();//CAN自检模式

		 CANMIMI_interrupt_OPEN();

	while(1)
	{


		 //CANa TX
		 for(i=0;i <TXCOUNT;i++)
		 {

		 //配置邮箱的接受还是发送模式
		 ECanaRegs.CANMD.all = 0x00000000;//配置cana mail0为发送邮箱

		 //邮箱使能 激活
		 ECanaRegs.CANME.all = 0x00000003;//邮箱激活

		 ECanaMboxes.MBOX0.MDL.all = k;

		 ECanaMboxes.MBOX0.MDH.all = k+1;

		 ECanaRegs.CANTRS.all = 0x00000001;  // Set TRS for all transmit mailboxes

		 //发送请求置位寄存器 启动邮箱数据发送

		 while(ECanaRegs.CANTA.all != 0x00000001 ) {
   }  // Wait for all TAn bits to be set..

		 ECanaRegs.CANTA.all = 0x00000001;   // Clear all TAn

		 loopcount++;//计数成功的发射次数

		 k++;

		 mailbox_read(0);

		 }
//=======================================================
 		 //CANb RX

		 for(i=TXCOUNT;i <TXCOUNT*2;i++)

	  	{


		 //配置邮箱的接受还是发送模式

		 ECanaRegs.CANMD.bit.MD1 = 1;;//cana配置位接受邮箱 mail1为接收邮箱

		 ECanaRegs.CANME.bit.ME1 =1;;

	 	}
//=========================================================
		 k = 0;
		 loopcount = 0;
		 configtestled();
	}

// asm(" ESTOP0"); // Stop here
}
//==========================================================
//GPIO复用LED灯闪烁子函数
void configtestled(void)
{


   EALLOW;
   GpioCtrlRegs.GPAMUX1.bit.GPIO0 = 0; // GPIO0复用为GPIO功能
   GpioCtrlRegs.GPADIR.bit.GPIO0 = ~GpioCtrlRegs.GPADIR.bit.GPIO0;  // GPIO0设置为输出
   EDIS;
}
//==========================================================
//读取指定邮箱的数据子函数
void mailbox_read(int16 MBXnbr)
{

	volatile struct MBOX *Mailbox;
	Mailbox = &ECanaMboxes.MBOX0 + MBXnbr;
	TESTMbox1 = Mailbox->MDL.all;
	TESTMbox2 = Mailbox->MDH.all;
	TESTMbox3 = Mailbox->MSGID.all;
}
//==========================================================
//CAN邮箱的ID配置子函数，本实验中使用了mail0作为发送邮箱，并且不设置过滤器，也就是说数据可以直接发送至总线不需要考虑ID，mail1是接收数据，过滤ID为0x00000001.
void mailID_Config(void)
{

	ECanaMboxes.MBOX0.MSGID.bit.IDE=0;
// ECanaMboxes.MBOX1.MSGID.bit.IDE=0;
	//CANA ID
	//配置收发的ID
// ECanaMboxes.MBOX0.MSGID.all = 0x00000000;
	 ECanaMboxes.MBOX1.MSGID.all = 0x00000001;
// ECanaMboxes.MBOX2.MSGID.all = 0x9555AAA2;
// ECanaMboxes.MBOX3.MSGID.all = 0x9555AAA3;
// ECanaMboxes.MBOX4.MSGID.all = 0x9555AAA4;
// ECanaMboxes.MBOX5.MSGID.all = 0x9555AAA5;
// ECanaMboxes.MBOX6.MSGID.all = 0x9555AAA6;
// ECanaMboxes.MBOX7.MSGID.all = 0x9555AAA7;
// ECanaMboxes.MBOX8.MSGID.all = 0x9555AAA8;
// ECanaMboxes.MBOX9.MSGID.all = 0x9555AAA9;
// ECanaMboxes.MBOX10.MSGID.all = 0x9555AAAA;
// ECanaMboxes.MBOX11.MSGID.all = 0x9555AAAB;
// ECanaMboxes.MBOX12.MSGID.all = 0x9555AAAC;
// ECanaMboxes.MBOX13.MSGID.all = 0x9555AAAD;
// ECanaMboxes.MBOX14.MSGID.all = 0x9555AAAE;
// ECanaMboxes.MBOX15.MSGID.all = 0x9555AAAF;

	 // Write to the MSGID field of RECEIVE mailboxes MBOX16 - 31
// ECanaMboxes.MBOX16.MSGID.all = 0x9555AA10;
// ECanaMboxes.MBOX17.MSGID.all = 0x9555AA11;
// ECanaMboxes.MBOX18.MSGID.all = 0x9555AA12;
// ECanaMboxes.MBOX19.MSGID.all = 0x9555AA13;
// ECanaMboxes.MBOX20.MSGID.all = 0x9555AA14;
// ECanaMboxes.MBOX21.MSGID.all = 0x9555AA15;
// ECanaMboxes.MBOX22.MSGID.all = 0x9555AA16;
// ECanaMboxes.MBOX23.MSGID.all = 0x9555AA17;
// ECanaMboxes.MBOX24.MSGID.all = 0x9555AA18;
// ECanaMboxes.MBOX25.MSGID.all = 0x9555AA19;
// ECanaMboxes.MBOX26.MSGID.all = 0x9555AA1A;
// ECanaMboxes.MBOX27.MSGID.all = 0x9555AA1B;
// ECanaMboxes.MBOX28.MSGID.all = 0x9555AA1C;
// ECanaMboxes.MBOX29.MSGID.all = 0x9555AA1D;
// ECanaMboxes.MBOX30.MSGID.all = 0x9555AA1E;
// ECanaMboxes.MBOX31.MSGID.all = 0x9555AA1F;

//CANB ID
/* Configure Mailbox under test as a Transmit mailbox */
	 ECanbMboxes.MBOX0.MSGID.bit.IDE=0;
// ECanbMboxes.MBOX0.MSGID.all = 0x00000000;
// ECanbMboxes.MBOX1.MSGID.all = 0x9555AAA1;
// ECanbMboxes.MBOX2.MSGID.all = 0x9555AAA2;
// ECanbMboxes.MBOX3.MSGID.all = 0x9555AAA3;
// ECanbMboxes.MBOX4.MSGID.all = 0x9555AAA4;
// ECanbMboxes.MBOX5.MSGID.all = 0x9555AAA5;
// ECanbMboxes.MBOX6.MSGID.all = 0x9555AAA6;
// ECanbMboxes.MBOX7.MSGID.all = 0x9555AAA7;
// ECanbMboxes.MBOX8.MSGID.all = 0x9555AAA8;
// ECanbMboxes.MBOX9.MSGID.all = 0x9555AAA9;
// ECanbMboxes.MBOX10.MSGID.all = 0x9555AAAA;
// ECanbMboxes.MBOX11.MSGID.all = 0x9555AAAB;
// ECanbMboxes.MBOX12.MSGID.all = 0x9555AAAC;
// ECanbMboxes.MBOX13.MSGID.all = 0x9555AAAD;
// ECanbMboxes.MBOX14.MSGID.all = 0x9555AAAE;
// ECanbMboxes.MBOX15.MSGID.all = 0x9555AAAF;

	 // Write to the MSGID field of RECEIVE mailboxes MBOX16 - 31
// ECanbMboxes.MBOX16.MSGID.all = 0x9555AA10;
// ECanbMboxes.MBOX17.MSGID.all = 0x9555AA11;
// ECanbMboxes.MBOX18.MSGID.all = 0x9555AA12;
// ECanbMboxes.MBOX19.MSGID.all = 0x9555AA13;
// ECanbMboxes.MBOX20.MSGID.all = 0x9555AA14;
// ECanbMboxes.MBOX21.MSGID.all = 0x9555AA15;
// ECanbMboxes.MBOX22.MSGID.all = 0x9555AA16;
// ECanbMboxes.MBOX23.MSGID.all = 0x9555AA17;
// ECanbMboxes.MBOX24.MSGID.all = 0x9555AA18;
// ECanbMboxes.MBOX25.MSGID.all = 0x9555AA19;
// ECanbMboxes.MBOX26.MSGID.all = 0x9555AA1A;
// ECanbMboxes.MBOX27.MSGID.all = 0x9555AA1B;
// ECanbMboxes.MBOX28.MSGID.all = 0x9555AA1C;
// ECanbMboxes.MBOX29.MSGID.all = 0x9555AA1D;
// ECanbMboxes.MBOX30.MSGID.all = 0x9555AA1E;
// ECanbMboxes.MBOX31.MSGID.all = 0x9555AA1F;
}
//==========================================================
//CAN邮箱的收发字节设置
void mail_length(void)
{


	 ECanaMboxes.MBOX0.MSGCTRL.bit.DLC = 8;
	 ECanaMboxes.MBOX1.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX2.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX3.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX4.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX5.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX6.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX7.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX8.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX9.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX10.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX11.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX12.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX13.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX14.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX15.MSGCTRL.bit.DLC = 8;
//
// ECanaMboxes.MBOX16.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX17.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX18.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX19.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX20.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX21.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX22.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX23.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX24.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX25.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX26.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX27.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX28.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX29.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX30.MSGCTRL.bit.DLC = 8;
// ECanaMboxes.MBOX31.MSGCTRL.bit.DLC = 8;

}
//==========================================================
//配置邮箱的数据
void mail_Data(void)
{

	//高低8位数据
// ECanaMboxes.MBOX0.MDL.all = 0x00001123;
// ECanaMboxes.MBOX0.MDH.all = 0x00001321;

// ECanaMboxes.MBOX1.MDL.all = 0x22222222;
// ECanaMboxes.MBOX1.MDH.all = 0x22222222;
//
// ECanaMboxes.MBOX2.MDL.all = 0x33333333;
// ECanaMboxes.MBOX2.MDH.all = 0x33333333;
//
// ECanaMboxes.MBOX3.MDL.all = 0x44444444;
// ECanaMboxes.MBOX3.MDH.all = 0x44444444;
//
// ECanaMboxes.MBOX4.MDL.all = 0x55555555;
// ECanaMboxes.MBOX4.MDH.all = 0x55555555;
//
// ECanaMboxes.MBOX5.MDL.all = 0x66666666;
// ECanaMboxes.MBOX5.MDH.all = 0x66666666;
//
// ECanaMboxes.MBOX6.MDL.all = 0x77777777;
// ECanaMboxes.MBOX6.MDH.all = 0x77777777;
//
// ECanaMboxes.MBOX7.MDL.all = 0x88888888;
// ECanaMboxes.MBOX7.MDH.all = 0x88888888;
//
// ECanaMboxes.MBOX8.MDL.all = 0x99999999;
// ECanaMboxes.MBOX8.MDH.all = 0x99999999;
//
// ECanaMboxes.MBOX9.MDL.all = 0xaaaaaaaa;
// ECanaMboxes.MBOX9.MDH.all = 0xaaaaaaaa;
//
// ECanaMboxes.MBOX10.MDL.all = 0xbbbbbbbb;
// ECanaMboxes.MBOX10.MDH.all = 0xbbbbbbbb;
//
// ECanaMboxes.MBOX11.MDL.all = 0xcccccccc;
// ECanaMboxes.MBOX11.MDH.all = 0xcccccccc;
//
// ECanaMboxes.MBOX12.MDL.all = 0xdddddddd;
// ECanaMboxes.MBOX12.MDH.all = 0xdddddddd;
//
// ECanaMboxes.MBOX13.MDL.all = 0xeeeeeeee;
// ECanaMboxes.MBOX13.MDH.all = 0xeeeeeeee;
//
// ECanaMboxes.MBOX14.MDL.all = 0xffffffff;
// ECanaMboxes.MBOX14.MDH.all = 0xffffffff;
//
// ECanaMboxes.MBOX15.MDL.all = 0x00001233;
// ECanaMboxes.MBOX15.MDH.all = 0x00003211;

	// 低8位数据

// ECanaMboxes.MBOX16.MDL.all = 0x00005444;
// ECanaMboxes.MBOX16.MDH.all = 0x00005544;
//
// ECanaMboxes.MBOX17.MDL.all = 0x11111111;
// ECanaMboxes.MBOX17.MDH.all = 0x11111111;
//
// ECanaMboxes.MBOX18.MDL.all = 0x22222222;
// ECanaMboxes.MBOX18.MDH.all = 0x22222222;
//
// ECanaMboxes.MBOX19.MDL.all = 0x33333333;
// ECanaMboxes.MBOX19.MDH.all = 0x33333333;
//
// ECanaMboxes.MBOX20.MDL.all = 0x44444444;
// ECanaMboxes.MBOX20.MDH.all = 0x44444444;
//
// ECanaMboxes.MBOX21.MDL.all = 0x55555555;
// ECanaMboxes.MBOX21.MDH.all = 0x55555555;
//
// ECanaMboxes.MBOX22.MDL.all = 0x66666666;
// ECanaMboxes.MBOX22.MDH.all = 0x66666666;
//
// ECanaMboxes.MBOX23.MDL.all = 0x77777777;
// ECanaMboxes.MBOX23.MDH.all = 0x77777777;
//
// ECanaMboxes.MBOX24.MDL.all = 0x88888888;
// ECanaMboxes.MBOX24.MDH.all = 0x88888888;
//
// ECanaMboxes.MBOX25.MDL.all = 0x99999999;
// ECanaMboxes.MBOX25.MDH.all = 0x99999999;
//
// ECanaMboxes.MBOX26.MDL.all = 0xaaaaaaaa;
// ECanaMboxes.MBOX26.MDH.all = 0xaaaaaaaa;
//
// ECanaMboxes.MBOX27.MDL.all = 0xbbbbbbbb;
// ECanaMboxes.MBOX27.MDH.all = 0xbbbbbbbb;
//
// ECanaMboxes.MBOX28.MDL.all = 0xcccccccc;
// ECanaMboxes.MBOX28.MDH.all = 0xcccccccc;
//
// ECanaMboxes.MBOX29.MDL.all = 0xdddddddd;
// ECanaMboxes.MBOX29.MDH.all = 0xdddddddd;
//
// ECanaMboxes.MBOX30.MDL.all = 0xeeeeeeee;
// ECanaMboxes.MBOX30.MDH.all = 0xeeeeeeee;
//
// ECanaMboxes.MBOX31.MDL.all = 0xffffffff;
// ECanaMboxes.MBOX31.MDH.all = 0xffffffff;


	//CANB
	//高低8位数据
// ECanbMboxes.MBOX0.MDL.all = 0xaaaaaaaa;
// ECanbMboxes.MBOX0.MDH.all = 0xdddddddd;
//
// ECanbMboxes.MBOX1.MDL.all = 0x22222222;
// ECanbMboxes.MBOX1.MDH.all = 0x22222222;
//
// ECanbMboxes.MBOX2.MDL.all = 0x33333333;
// ECanbMboxes.MBOX2.MDH.all = 0x33333333;
//
// ECanbMboxes.MBOX3.MDL.all = 0x44444444;
// ECanbMboxes.MBOX3.MDH.all = 0x44444444;
//
// ECanbMboxes.MBOX4.MDL.all = 0x55555555;
// ECanbMboxes.MBOX4.MDH.all = 0x55555555;
//
// ECanbMboxes.MBOX5.MDL.all = 0x66666666;
// ECanbMboxes.MBOX5.MDH.all = 0x66666666;
//
// ECanbMboxes.MBOX6.MDL.all = 0x77777777;
// ECanbMboxes.MBOX6.MDH.all = 0x77777777;
//
// ECanbMboxes.MBOX7.MDL.all = 0x88888888;
// ECanbMboxes.MBOX7.MDH.all = 0x88888888;
//
// ECanbMboxes.MBOX8.MDL.all = 0x99999999;
// ECanbMboxes.MBOX8.MDH.all = 0x99999999;
//
// ECanbMboxes.MBOX9.MDL.all = 0xaaaaaaaa;
// ECanbMboxes.MBOX9.MDH.all = 0xaaaaaaaa;
//
// ECanbMboxes.MBOX10.MDL.all = 0xbbbbbbbb;
// ECanbMboxes.MBOX10.MDH.all = 0xbbbbbbbb;
//
// ECanbMboxes.MBOX11.MDL.all = 0xcccccccc;
// ECanbMboxes.MBOX11.MDH.all = 0xcccccccc;
//
// ECanbMboxes.MBOX12.MDL.all = 0xdddddddd;
// ECanbMboxes.MBOX12.MDH.all = 0xdddddddd;
//
// ECanbMboxes.MBOX13.MDL.all = 0xeeeeeeee;
// ECanbMboxes.MBOX13.MDH.all = 0xeeeeeeee;
//
// ECanbMboxes.MBOX14.MDL.all = 0xffffffff;
// ECanbMboxes.MBOX14.MDH.all = 0xffffffff;
//
// ECanbMboxes.MBOX15.MDL.all = 0x00001233;
// ECanbMboxes.MBOX15.MDH.all = 0x00003211;
//
// //低8位数据
//
// ECanbMboxes.MBOX16.MDL.all = 0x00005444;
// ECanbMboxes.MBOX16.MDH.all = 0x00005544;
//
// ECanbMboxes.MBOX17.MDL.all = 0x11111111;
// ECanbMboxes.MBOX17.MDH.all = 0x11111111;
//
// ECanbMboxes.MBOX18.MDL.all = 0x22222222;
// ECanbMboxes.MBOX18.MDH.all = 0x22222222;
//
// ECanbMboxes.MBOX19.MDL.all = 0x33333333;
// ECanbMboxes.MBOX19.MDH.all = 0x33333333;
//
// ECanbMboxes.MBOX20.MDL.all = 0x44444444;
// ECanbMboxes.MBOX20.MDH.all = 0x44444444;
//
// ECanbMboxes.MBOX21.MDL.all = 0x55555555;
// ECanbMboxes.MBOX21.MDH.all = 0x55555555;
//
// ECanbMboxes.MBOX22.MDL.all = 0x66666666;
// ECanbMboxes.MBOX22.MDH.all = 0x66666666;
//
// ECanbMboxes.MBOX23.MDL.all = 0x77777777;
// ECanbMboxes.MBOX23.MDH.all = 0x77777777;
//
// ECanbMboxes.MBOX24.MDL.all = 0x88888888;
// ECanbMboxes.MBOX24.MDH.all = 0x88888888;
//
// ECanbMboxes.MBOX25.MDL.all = 0x99999999;
// ECanbMboxes.MBOX25.MDH.all = 0x99999999;
//
// ECanbMboxes.MBOX26.MDL.all = 0xaaaaaaaa;
// ECanbMboxes.MBOX26.MDH.all = 0xaaaaaaaa;
//
// ECanbMboxes.MBOX27.MDL.all = 0xbbbbbbbb;
// ECanbMboxes.MBOX27.MDH.all = 0xbbbbbbbb;
//
// ECanbMboxes.MBOX28.MDL.all = 0xcccccccc;
// ECanbMboxes.MBOX28.MDH.all = 0xcccccccc;
//
// ECanbMboxes.MBOX29.MDL.all = 0xdddddddd;
// ECanbMboxes.MBOX29.MDH.all = 0xdddddddd;
//
// ECanbMboxes.MBOX30.MDL.all = 0xeeeeeeee;
// ECanbMboxes.MBOX30.MDH.all = 0xeeeeeeee;
//
// ECanbMboxes.MBOX31.MDL.all = 0xffffffff;
// ECanaMboxes.MBOX31.MDH.all = 0xffffffff;
}
//==========================================================
//禁止邮箱中断子函数 不需要修改
void CANMIM_interrupt(void)
{

  		/* Write to the mailbox RAM field */
  		EALLOW;
  		ECanaRegs.CANMIM.all = 0xFFFFFFFF; //enable interrupt of mailbox//邮箱中断屏蔽寄存器 使能
}
//==========================================================
//中断打开子函数
void CANMIMI_interrupt_OPEN(void)
{

	 EALLOW;

		    ECanaShadow.CANMIM.all=ECanaRegs.CANMIM.all;
		    ECanaShadow.CANMIM.bit.MIM16=1;
		    ECanaRegs.CANMIM.all=ECanaShadow.CANMIM.all;

		    ECanaShadow.CANMIL.all = ECanaRegs.CANMIL.all;
		    ECanaShadow.CANMIL.all = 0;              // 1-32号邮箱中断在中断线0上产生
		    ECanaRegs.CANMIL.all = ECanaShadow.CANMIL.all;

		    ECanaShadow.CANGIM.all = ECanaRegs.CANGIM.all;
		    ECanaShadow.CANGIM.bit.I0EN = 1 ;              // 中断线0使能
		    ECanaRegs.CANGIM.all = ECanaShadow.CANGIM.all;

		    ECanaShadow.CANMC.all = ECanaRegs.CANMC.all;
		    ECanaShadow.CANMC.bit.STM = 0;    // 0-Normal
		    ECanaRegs.CANMC.all = ECanaShadow.CANMC.all;

	EDIS;

		    EALLOW;  // This is needed to write to EALLOW protected registers
		    PieVectTable.ECAN0INTA = &ECAN0INTA_ISR;//R-CAN1 接收后中断函数
		    EDIS;   // This is needed to disable write to EALLOW protected registers

		    IER |=M_INT9;// 开CPU中断1~9(必须开放对应的CPU级中断口)

		    PieCtrlRegs.PIECTRL.bit.ENPIE = 1;   // Enable the PIE block
		    PieCtrlRegs.PIEIER9.bit.INTx5=1;     //R-CAN0 接收邮箱

		    EINT;//开总中断
		    ERTM;//使能实时中断（CPU级的）
}
//==========================================================
//CAN自我检测功能，仅需要的时候才进行修改
void CAN_SelfTestMode(void)
{


		EALLOW;
		ECanaShadow.CANMC.all = ECanaRegs.CANMC.all;
		ECanaShadow.CANMC.bit.STM = 0;    // Configure CAN for self-test mode//自动测试模式位
		ECanaRegs.CANMC.all = ECanaShadow.CANMC.all;
		EDIS;

		EALLOW;
		ECanbShadow.CANMC.all = ECanbRegs.CANMC.all;
		ECanbShadow.CANMC.bit.STM = 0;    // Configure CAN for self-test mode
		ECanbRegs.CANMC.all = ECanbShadow.CANMC.all;
		EDIS;

}

中断服务函数，在DSP2833x_DefaultIsr.c中找到ECAN0INTA_ISR。

// INT9.5
interrupt void ECAN0INTA_ISR(void)  // eCAN-A
{

    if(ECanaRegs.CANRMP.all==0x00000002)//RX get after flag and int BOX1
    {

        ECanaRegs.CANRMP.all = 0x00000002;//clear GMIF1
        TestMbox1 = ECanaMboxes.MBOX1.MDL.all;
        TestMbox2 = ECanaMboxes.MBOX1.MDH.all;
        TestMbox3 = ECanaMboxes.MBOX1.MSGID.all;//从外部接收邮箱1的ID，1为接收邮箱（CANMD）
    }
    PieCtrlRegs.PIEACK.all = PIEACK_GROUP9;
}

7. 程序调试

编译
debug
在变量观测表中添加观察变量
全速运行程序

可以看到黄色的数据一直在变换。
程序中，loopcount’为发送成功计数，会一直在递增。
TESTMbox1-2为mail0邮箱0发送的数据，0-1000循环发送。低位TESTMbox1永远比高位TESTMbox2小1。
TESTMbox3为ID号。

打开ZCANPRO，配置参数，波特率为1mbps，并根据实际串口选择连接。可以看到数据在源源不断的更新。
通过ZCANPRO发送数据，DSP接收数据。

#pic_center)
根据压力测试，对于一个数据发送10次并且每次发送100帧，可以有较高成功率的接收到。根据自己的需求发送数据，配置帧ID等。
点击立即发送。可以在CCS的变量表中看到数据的变化。如下图所示。
200789对应的就是数据中的低八位：00031055
4181对应的就是数据中的高八位：00001055
